NEMA Connection 5G Single Lamp Controller for Smart Control System Plastic Customized
  • NEMA Connection 5G Single Lamp Controller for Smart Control System Plastic Customized
  • NEMA Connection 5G Single Lamp Controller for Smart Control System Plastic Customized
  • NEMA Connection 5G Single Lamp Controller for Smart Control System Plastic Customized
  • NEMA Connection 5G Single Lamp Controller for Smart Control System Plastic Customized
  • NEMA Connection 5G Single Lamp Controller for Smart Control System Plastic Customized

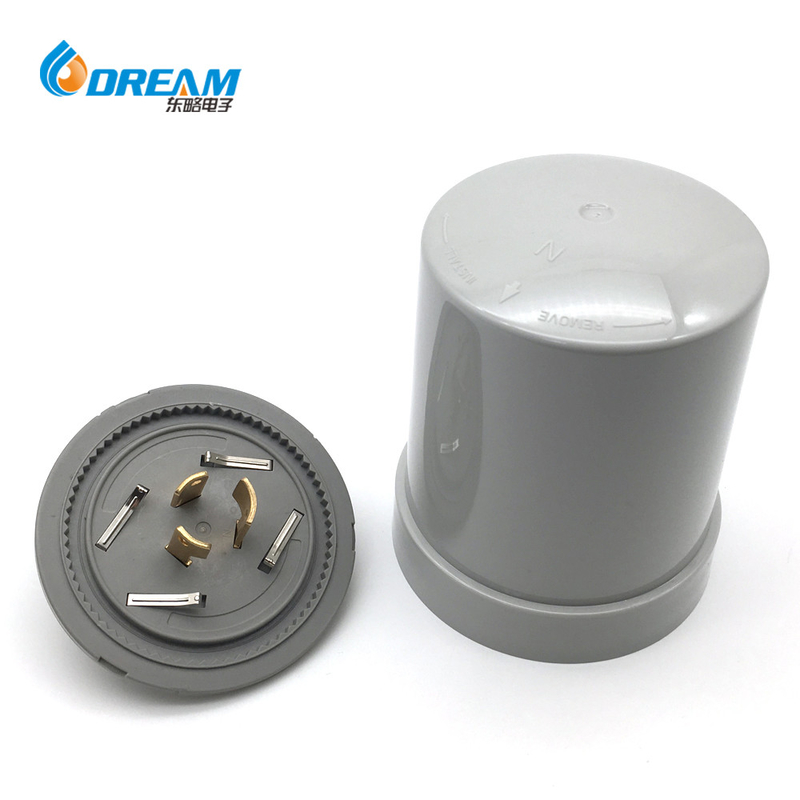

NEMA Connection 5G Single Lamp Controller for Smart Control System Plastic Customized

NEMA Connection 5G Single Lamp Controller for Smart Control System Plastic Customized

Place of Origin Guangdong, China
Brand Name DREAM-START
Certification UL/TUV/ROHS/CE
Model Number DR-E03
Product Details
Name:
Nema Photocell Sensor
Color:
Customized Color
Material:
Plastic
Highlight:

NEMA Connection 5G Single Lamp Controller

,

Single Lamp Controller for Smart Control

Payment & Shipping Terms
Minimum Order Quantity
10 pieces
Price
$2-1.5/pieces 10-500pieces
Packaging Details
Customization
Delivery Time
1-10 work days
Payment Terms
Western Union, MoneyGram, D/P, T/T, D/A, L/C
Supply Ability
100000Prpieces
Product Description

Basic Specification:



 DR-E03 (Photocontrol) Parameters

Sensor Type
Photodiode
Rated Voltage
110V~240V AC
Wide Input Voltage Range
100V~277Vac
Working Mode
<10~20 Lux / ON ,  >30~60Lux / OFF,Time-delay: 2 Seconds
Load Current
15A (220Vac)
Ambient Temp
-40℃~105℃
Size
φ80.5mm * φ51.6mm(Height)
Case Material
UV resistant PC
Shell Design
It Conforms to American National Standard ANSI C136.41-2013
Safety Certification
E510435,Vol 1 , Contact Us For More Informations
Life Span
Quality Assurance for 3 Years
Applications
Street /Roadway Lighting, Photocontrol Lighting, Parking Lot Lighting,
Garden Lighting, Smart City, Smart Street Light, 5G, Smart Pole



NEMA Connection 5G Single Lamp Controller for Smart Control System Plastic Customized 0
NEMA Connection 5G Single Lamp Controller for Smart Control System Plastic Customized 1

NEMA Connection 5G Single Lamp Controller for Smart Control System Plastic Customized 2


Packing & Delivery

NEMA Connection 5G Single Lamp Controller for Smart Control System Plastic Customized 3

NEMA Connection 5G Single Lamp Controller for Smart Control System Plastic Customized 4
