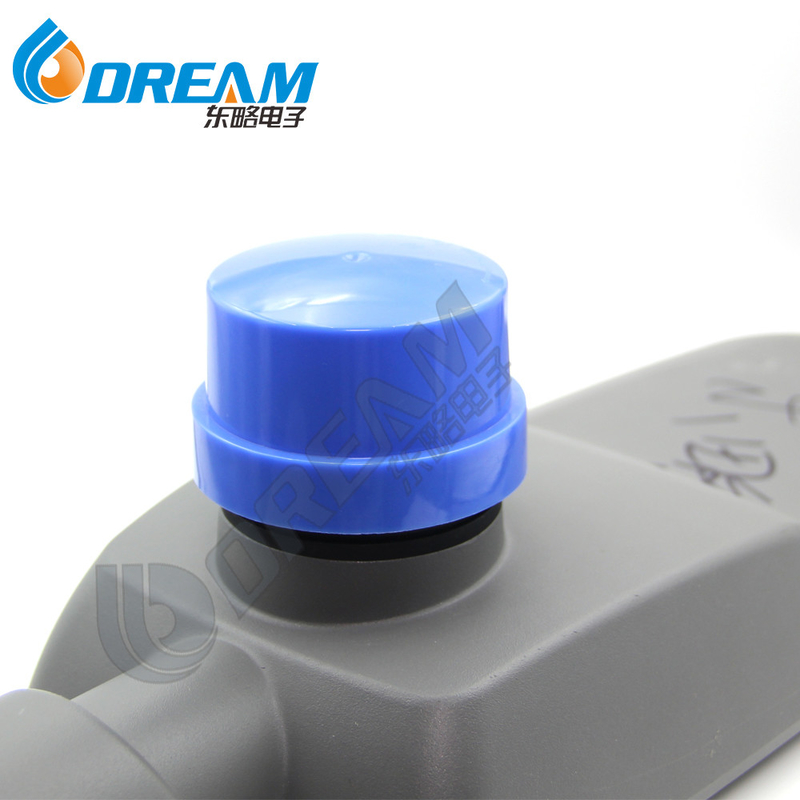

DREAM START Smart Wireless Luminaire Controller with Connection Socket
  • DREAM START Smart Wireless Luminaire Controller with Connection Socket
  • DREAM START Smart Wireless Luminaire Controller with Connection Socket
  • DREAM START Smart Wireless Luminaire Controller with Connection Socket
  • DREAM START Smart Wireless Luminaire Controller with Connection Socket
  • DREAM START Smart Wireless Luminaire Controller with Connection Socket
  • DREAM START Smart Wireless Luminaire Controller with Connection Socket
DREAM START Smart Wireless Luminaire Controller with Connection Socket

DREAM START Smart Wireless Luminaire Controller with Connection Socket

Place of Origin Guangdong, China
Brand Name DREAM-START
Certification UL/CE
Model Number DR-E03
Product Details
Name:
NEMA SOCKET 7pin
Series:
Photocell Sensor Switch
Output:
Switching Transducer
Color:
Black
Rated Frequency:
50/60Hz
Ip Rating:
IP65
Logo:
Customize Buyer's Logo,>500
Style:
Modern
Use:
Smart LED Lighting
Product Type:
Receptacles
Pin:
3 5 7pin
Product Nam:
Electronic Photocontrol
Payment & Shipping Terms
Minimum Order Quantity
≥1 pieces
Price
$0.95-1.56/pieces 10-500pieces
Packaging Details
10X10X10 cm/Customization
Delivery Time
1-5 work days
Payment Terms
Western Union, MoneyGram, D/P, T/T, D/A, L/C
Supply Ability
100000Prpieces
Product Description

Smart Wireless Luminaire Controller with Connection Socket
Basic Specification:



 DR-E03 (Photocontrol) Parameters

Sensor Type
Photodiode
Rated Voltage
110V~480V AC
Reted Frequency
 50/60HZ
Working Mode
<10~20 Lux / ON ,  >30~60Lux / OFF,Time-delay: 2 Seconds
Load Current
16A (220Vac)
Ambient Temp
-40℃~105℃
Size
φ80.5mm * φ51.6mm(Height)
Case Material
UV resistant PC
Shell Design
It Conforms to American National Standard ANSI C136.41-2013
Safety Certification
E510435,Vol 1 , Contact Us For More Informations
Life Span
Quality Assurance for 3 Years
Applications
Street /Roadway Lighting, Photocontrol Lighting, Parking Lot Lighting,
Garden Lighting, Smart City, Smart Street Light, 5G, Smart Pole





NEMA ( ANSI C136.41 / ANSI C136.10 )


NEMA socket provides an electrical and mechanical connection between the control cell and the luminaire.

ANSI C136 coded standard clearly defines the size of the socket, the type of locking and other details.

NEMA socket is a standardized type of connection across the lighting industry.

NEMA socket has demountable structure. Therefore, this makes it easier to do things like installation,

maintenance and repair. NEMA socket provides a reliable power connection with strong twist lock contacts.





DREAM START Smart Wireless Luminaire Controller with Connection Socket 0

DREAM START Smart Wireless Luminaire Controller with Connection Socket 1
DREAM START Smart Wireless Luminaire Controller with Connection Socket 2

DREAM START Smart Wireless Luminaire Controller with Connection Socket 3
DREAM START Smart Wireless Luminaire Controller with Connection Socket 4

NEMA socket provides the opportunity to adapt to the technology of the future.

The light fixture with NEMA socket is open to new developments. When a new technology is

developed in future control systems, only the control device can be changed without changing

the light fixtures to keep pace with this innovation.



NEMA socket signal contacts can support the 1-10VDC or Digital Addressable Lighting Interface

(DALI) protocol. Intelligence lighting systems which allows remote monitoring, control can be easily

attached to any light fixture when produced in accordance with NEMA socket structure.



NEMA Sockets are made of durable polycarbonate material.
In order to prevent water from entering the body of the armature,there is a seal at the bottom.
This socket, which can be opened and closedonly by hand without requiring any tools,
will be the indispensable solution ofsmart city applications of the future.
NEMA socket is widely used in outdoorlight fixtures, especially street light fixtures.

DREAM START Smart Wireless Luminaire Controller with Connection Socket 5

Lighting DREAM START Led Luminaires, optional NEMA socket connection is used.


Led luminaires are controlled remotely with the cells mounted on the Nema socket, with commands transmitted

to the luminaire driver by a central software. 3 - 5 and 7 pin NEMA socket is preferred according to the control

method used. The most suitable interface can be preferred according to the projects to be made between the

central software and the NEMA socket cell.



The most common interfaces are LoRAWAN, NBIoT, ZigBee ,WI-FI , and Bluetooth 4.0.

DREAM START Smart Wireless Luminaire Controller with Connection Socket 6
