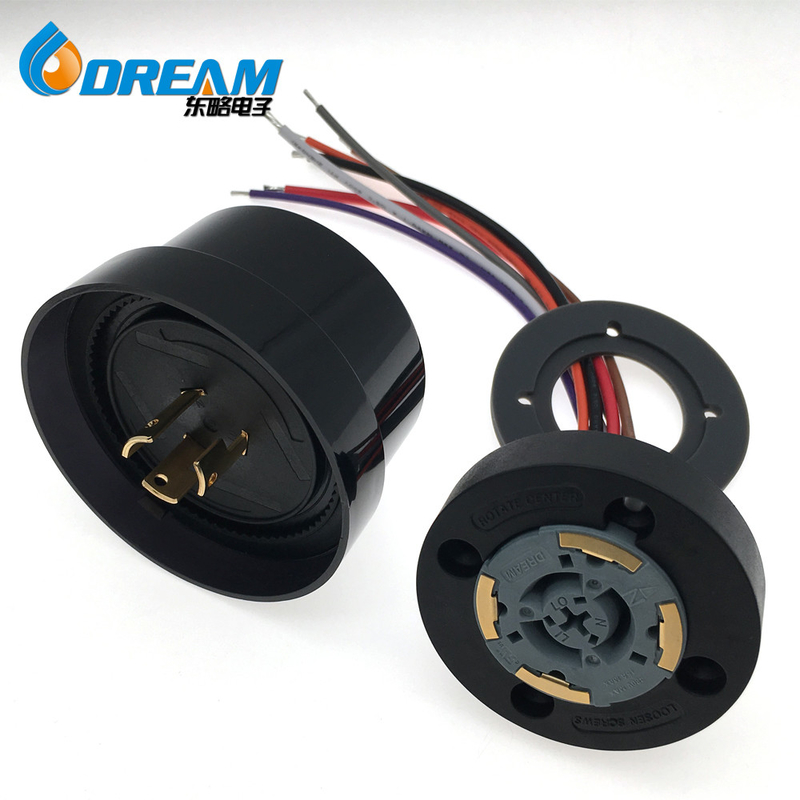

3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle
  • 3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle
  • 3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle
  • 3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle
  • 3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle
  • 3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle
  • 3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle
3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle

3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle

Place of Origin Guangdong, China
Brand Name DREAM-START
Certification UL
Model Number DR-E02
Product Details
Type:
Plug With Socket
Style:
Modern
Product Name:
NEMA Photocell Controller
Usage:
Sports Fields, Parking Lots, Commercial Buildings, Street Lights
Warranty:
Other
Color:
Black
Payment & Shipping Terms
Minimum Order Quantity
10 pieces
Price
$2.3/pieces
Packaging Details
45*30*25cm/Custom Packing
Delivery Time
1-7 work days
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
50000
Product Description






Rated Voltage

110V~240V AC

Wide Input Voltage Range



100V~277Vac

Working Mode

<10~20 Lux / ON , >30~60Lux / OFF,Time-delay: 2 Seconds

Load Current

15A (220Vac)

Ambient Temp

-40℃~105℃

Size

φ80.5mm * φ51.6mm(Height)

Shell Design

It Conforms to American National Standard ANSI C136.41-2013

Safety Certification

E510435,Vol 1

Applications

Street /Roadway Lighting, Photocontrol Lighting, Parking Lot Lighting, Garden Lighting, Smart City



* 【AUTOMATIC ON/OFF 】 - The photocell sensor senses sunlight, automatically turns on the light at dusk,

     and automatically turns off the light at dawn.

* 【EASY TO INSTALL 】 - The Dusk to Dawn light sensor just need to plug in a base, twist lock plug for quick installation.
* 【TIME DELAY FEATURE】 - A preset 2-8 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time.
* 【IP65 & SURGE PROTECTION】 - IP65 waterproof rating.Surge Protection Available, help to protect the lamp from the lightening.Suitable
     for outdoor fittings, such as area lights, parking lot light, shoe box lights, street lights etc.
* 【WARRANTY】 - Certificate listed for high quality and safe operation. 3-Year Warranty to set your mind at ease.

The photocell control can open or close light according ambient-light, ambient-temperature and humidity cannot effect it. It's not only
convenient but also practical, it can be used in the load of working all day and all night. for instant control road light,garden light etc.

The photocell control is designed with microprocessor circuits with photodiode and a surge arrester (MOV) is provided. It's quicker
response with time delay of 0-3 seconds offers easy-to-test feature. further, a preset 2-8 seconds time-delay might avoid mis-operation
due to spotlight or lightning during the night time. the relay has sufficient work life of over 7300cycles.
Use with TWIST-LOCK PHOTOCONTROL RECEPTACLE.(Conforms ANSI C136.41-2013)





3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle 0
3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle 1
3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle 2
3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle 3



Packing & Delivery
3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle 4




3 PIN Nema PhotoControl Receptacles Smart Street Lighting Receptacle 5


FAQ

About us
Q: Are you Trading Company or Manufacturer?
A:We are a factory,We manufacture connector more than 10 years
Q: What is your quality control process?
A:We do 100% inspection for all products before packing. We have an excellent QC process and department, t

    hey will inspect every product and ensure the connector can work before shipped out.
About Moq
Q: What's your Moq?
A:Without MOQ,We can accept samples order also, But we recommend buying more than 100 to save shipping.
About Sample
Q: Can I take samples before bulk order?
A:Yes, we are always happy to send you samples of our products.
Simply let us know what your requirements are and the delivery address.
About OEM&ODM
Q: Can you provide custom service?
A:Yes! We have profesional designer can provide free design for you.
Please send your requirements to us!
